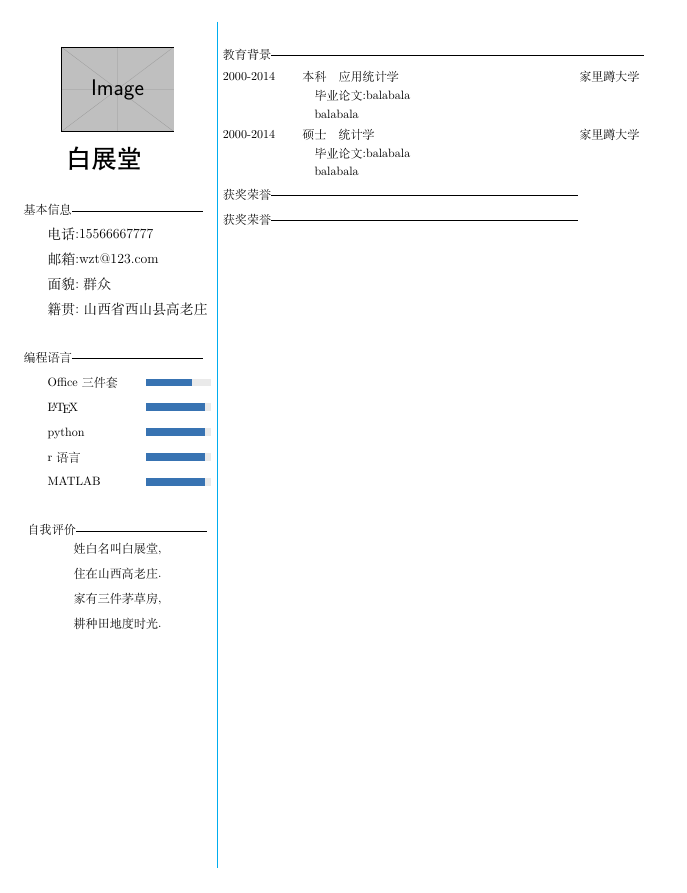

## 编译环境 操作系统 * [x] Windows 7/8/10 * [ ] macOS * [ ] Linux `若需勾选,请把[ ]改成[x]` Tex发行版 * [x] TexLive `2018` * [ ] MikTeX `版本号` * [ ] CTeX `若需勾选,请把[ ]改成[x]` ## 我的问题 请问,在paracol宏包中能不能使分栏线的长度=\textheight? ![](https://wenda.latexstudio.net/data/attach/200625/pfqjESgt.png) 源代码: ``` \documentclass{ctexart} \usepackage{paracol} \usepackage{zhlipsum} \usepackage{lipsum} \usepackage{geometry} \usepackage{graphicx} \usepackage{xcolor} \usepackage{multirow} \usepackage{calc} \usepackage{fontawesome} \geometry{top=1cm,bottom=1cm,right=1cm,left=1cm} \pagestyle{empty} \setlength{\parskip}{0.5em} \begin{document} \columnseprule=0.5pt \columnratio{0.3,0.7} \begin{paracol}{2} \begin{figure}[h] \centering \includegraphics[width=0.6\columnwidth]{baizhantang} \end{figure} \makebox[0.6\columnwidth][c]{\huge\heiti 白展堂} \vspace{20pt} \noindent 基本信息\rule[0.5ex]{0.7\columnwidth}{0.6pt} \makebox[0.85\columnwidth][l]{\large 电话:15566667777 } \makebox[0.85\columnwidth][l]{\large 邮箱:wzt@123.com } \makebox[0.85\columnwidth][l]{\large 政治面貌:群众 } \makebox[0.85\columnwidth][l]{\large 籍贯:山西省西山县高老庄 } \vspace{20pt} %s定义进度条 \definecolor{color1}{rgb}{0.22,0.45,0.70} % light blue \definecolor{color2}{rgb}{0.45,0.45,0.45} % dark grey \newcommand{\progressbar}[2][2cm]{% \textcolor{color1}{\rule{#1 * \real{#2} / 100}{1.5ex}}% \textcolor{color2!15}{\rule{#1 - #1 * \real{#2} / 100}{1.5ex}}} \noindent 编程语言\rule[0.5ex]{0.7\columnwidth}{0.6pt} Office 三件套 \hfill \progressbar{70} \LaTeX \hfill \progressbar{90} python \hfill \progressbar{90} r语言 \hfill \progressbar{90} MATLAB \hfill \progressbar{90} \vspace{20pt} \noindent 自我评价\rule[0.5ex]{0.7\columnwidth}{0.6pt} { \centering 姓白名叫白展堂,\par 住在山西高老庄.\par 家有三件茅草房,\par 耕种田地度时光.\par } \switchcolumn \noindent 教育背景\rule[0.5ex]{0.85\columnwidth}{0.6pt}\par\noindent \begin{tabular*}{\columnwidth}{@{}p{0.15\columnwidth}p{0.6\columnwidth}p{0.25\columnwidth}} 2000-2014 & 本科\quad 应用统计学&家里蹲大学 \\ &\multicolumn{2}{l}{\faAngleDoubleRight\quad 毕业论文:balabala}\\ &\multicolumn{2}{l}{\faAngleDoubleRight\quad balabala} \end{tabular*}\\ \begin{tabular*}{\columnwidth}{@{}p{0.15\columnwidth}p{0.6\columnwidth}p{0.25\columnwidth}} 2000-2014 & 硕士\quad 统计学&家里蹲大学 \\ &\multicolumn{2}{l}{\faAngleDoubleRight\quad 毕业论文:balabala}\\ &\multicolumn{2}{l}{\faAngleDoubleRight\quad balabala} \end{tabular*} \noindent 获奖荣誉\rule[0.5ex]{0.7\columnwidth}{0.6pt} \noindent 获奖荣誉\rule[0.5ex]{0.7\columnwidth}{0.6pt} \end{paracol} \end{document} ```

2 回答2

0
这个线,是不是 tikz 用 overlay 画一个更加随意一点,这样做很受限制。
0
如楼上所说,用`tikz`画是最好。这里提几点意见: 首先你的例子并不是最小示例,99%的内容都是和你的内容无关的,实际上下面这段代码就能完全复现你的问题 ```tex \documentclass{article} \usepackage{paracol} \begin{document} \setlength{\columnseprule}{.5pt} \begin{paracol}{2} test \end{paracol} \end{document} ``` 其余的内容与你要解决的问题并没有什么太大的关系。 其次,不要在示例中使用与字体有关的包,除非是与该字体包有关的问题,否则别人电脑没这个字体怎么办? 最后,如非必要,不要使用插入图片的代码,如果是与之相关的问题,使用`\includegraphics{example-image}`插入示例图片,而不是你自己的图片。 下面是使用`tikz`绘制的代码 ```tex \documentclass{ctexart} \usepackage{paracol} \usepackage{zhlipsum} \usepackage{lipsum} \usepackage{geometry} \usepackage{graphicx} \usepackage{xcolor} \usepackage{multirow} \usepackage{calc} % \usepackage{fontawesome} \geometry{top=1cm,bottom=1cm,right=1cm,left=1cm} \pagestyle{empty} \setlength{\parskip}{0.5em} \newcommand\measurepage{\dimexpr\pagegoal-\pagetotal-\baselineskip\relax} \usepackage{tikz} \usepackage{tikzpagenodes} \usetikzlibrary{calc} \begin{document} \begin{tikzpicture}[overlay, remember picture] \coordinate (a) at (current page text area.north west); \coordinate (b) at (current page text area.north east); \coordinate (c) at (current page text area.south west); \coordinate (d) at (current page text area.south east); \coordinate (A) at ($(a)!0.3!(b) + (0.2\columnsep, 0)$); \coordinate (B) at ($(c)!0.3!(d) + (0.2\columnsep, 0)$); \draw[line width=.8pt, cyan] (A) -- (B); \end{tikzpicture} \columnratio{0.3,0.7} \begin{paracol}{2} \begin{figure}[h] \centering % \includegraphics[width=0.6\columnwidth]{baizhantang} \includegraphics[width=0.6\columnwidth]{example-image} \end{figure} \makebox[0.6\columnwidth][c]{\huge\heiti 白展堂} \vspace{20pt} \noindent 基本信息\rule[0.5ex]{0.7\columnwidth}{0.6pt} \makebox[0.85\columnwidth][l]{\large 电话:15566667777 } \makebox[0.85\columnwidth][l]{\large 邮箱:wzt@123.com } \makebox[0.85\columnwidth][l]{\large 面貌:群众 } \makebox[0.85\columnwidth][l]{\large 籍贯:山西省西山县高老庄 } \vspace{20pt} %s定义进度条 \definecolor{color1}{rgb}{0.22,0.45,0.70} % light blue \definecolor{color2}{rgb}{0.45,0.45,0.45} % dark grey \newcommand{\progressbar}[2][2cm]{% \textcolor{color1}{\rule{#1 * \real{#2} / 100}{1.5ex}}% \textcolor{color2!15}{\rule{#1 - #1 * \real{#2} / 100}{1.5ex}}} \noindent 编程语言\rule[0.5ex]{0.7\columnwidth}{0.6pt} Office 三件套 \hfill \progressbar{70} \LaTeX \hfill \progressbar{90} python \hfill \progressbar{90} r语言 \hfill \progressbar{90} MATLAB \hfill \progressbar{90} \vspace{20pt} \noindent 自我评价\rule[0.5ex]{0.7\columnwidth}{0.6pt} { \centering 姓白名叫白展堂,\par 住在山西高老庄.\par 家有三件茅草房,\par 耕种田地度时光.\par } \switchcolumn \noindent 教育背景\rule[0.5ex]{0.85\columnwidth}{0.6pt}\par\noindent \begin{tabular*}{\columnwidth}{@{}p{0.15\columnwidth}p{0.6\columnwidth}p{0.25\columnwidth}} 2000-2014 & 本科\quad 应用统计学&家里蹲大学 \\ &\multicolumn{2}{l}{\quad 毕业论文:balabala}\\ &\multicolumn{2}{l}{\quad balabala} \end{tabular*}\\ \begin{tabular*}{\columnwidth}{@{}p{0.15\columnwidth}p{0.6\columnwidth}p{0.25\columnwidth}} 2000-2014 & 硕士\quad 统计学&家里蹲大学 \\ &\multicolumn{2}{l}{\quad 毕业论文:balabala}\\ &\multicolumn{2}{l}{\quad balabala} \end{tabular*} \noindent 获奖荣誉\rule[0.5ex]{0.7\columnwidth}{0.6pt} \noindent 获奖荣誉\rule[0.5ex]{0.7\columnwidth}{0.6pt} \end{paracol} \end{document} ``` ![](https://wenda.latexstudio.net/data/attach/200626/Ebz8P9C0.png)
